Circuit Schematic 2 RFID based Attendance System using 8051

8051. - This is electronic circuit schematic of Circuit Schematic 2 RFID based Attendance System using 8051 IC like in Figure 1 below. In this circuit schematic the basic component used are RFID and 8051 microsontroller.

In here we will give you global description about Circuit Schematic 2 RFID based Attendance System using 8051 and then we will give you link to continue your reading from original source as external website.

Circuit Schematic

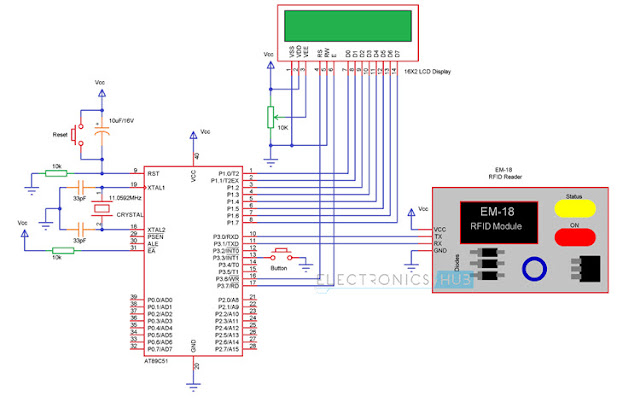

Figure 1. Circuit Schematic 2 RFID based Attendance System using 8051 (Source: Electronicshub)

Component Part

• AT89C51 Microcontroller
• AT89C51 Programming Board
• 11.0592 MHz Quartz Crystal
• 2 x 33pF Ceramic Capacitors
• 2 x 10KΩ Resistor
• 10µF Electrolytic Capacitor
• 2 x Push Button
• 16 x 2 LCD Display
• 3 x 1KΩ Resistor
• 10KΩ POT
• EM-18 RFID Reader Module
• RFID Tags or Cards
• Connecting Wires

Description

Circuit schematic like in Figure 1 above is Circuit Schematic Circuit Schematic 2 RFID based Attendance System using 8051. Electronicshub site describe that first we’ll see the basic connections with respect to the microcontroller. Here, we’ll need to connect a crystal, a reset circuit and external access.

To use the on-chip oscillator, an 11.0592 MHz quartz crystal is connected to pins 18 (XTAL2) and 19 (XTAL1) of the microcontroller. Two 33pF ceramic capacitors are connected from the crystal to ground.

The reset on the 8051 microcontroller is active high i.e. upon applying a high pulse to RST pin, the microcontroller will reset. A 10KΩ resistor is connected from the RST (Pin 9) of the microcontroller to ground.

A 10µF electrolytic capacitor is connected between the positive supply and RST pin. A push button is connected across the capacitor.

And now you can read more you knowledge about Circuit Schematic 2 RFID based Attendance System using 8051 from the original source article using link [here].
