Circuit Schematic Inverter 12V to 220V 100W using Transistor

Inverter. - This is electronic Circuit Schematic Inverter 12V to 220V 100W using Transistor like in Figure 1 below. In this circuit schematic the basic component used are transistors.

In here we will give you global description about Circuit Schematic Inverter 12V to 220V 100W using Transistor and then we will give you link to continue your reading from original source as external website.

Circuit Schematic

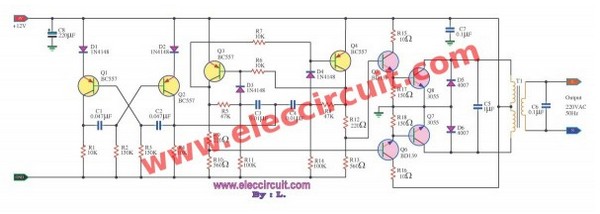

Figure 1. Circuit Schematic Inverter 12V to 220V 100W using Transistor
(Source: Screenshot of Eleccircuit)

Component Part

The parts you will need
Q1-Q4______BC557___45V 100mA PNP Transistor
Q5,Q6______BD139___80V 1.5A NPN Transistor
Q7,Q8______2N3055___100V, 15A, 115W, >2,5MHz NPN transistor
D1,D2,D3,D4_____1N4148______75V 150mA Diodes
D5,D6_______1N4007 __1000V 1A Diodes
R1,R4,R6,R7_________10K___1/2W Resistors tolerance: 5%
R2,R3___________150K______1/2W Resistors tolerance: 5%
R5,R6___________ 47K______1/2W Resistors tolerance: 5%
R9,R12__________ 220 ohms 1/2W Resistors tolerance: 5%
R10,R13_________ 560 ohms 1/2W Resistors tolerance: 5%
R11, R14________ 100K ____1/2W Resistors tolerance: 5%
R15, R16________ 10 ohms__10W Resistors tolerance: 5%
R17, R18________ 150 ohms_1/2W Resistors tolerance: 5%
C1,C2___________0.047uF 50V_____Ceramic capacitors
C3,C4__________0.01uF 50V____Ceramic capacitors
C5______________1uF 50V_____ Ceramic capacitors
C6_____________0.1uF 250V____ Ceramic capacitors
C7_____________0.1uF 50V_____ Ceramic capacitors
C8____________220uF 25V_______ Electrolytic capacitors
T1___230V AC primary to 12V-0-12V,2-8A secondary transformer.

Description

Circuit schematic like in Figure 1 above is Circuit Schematic Inverter 12V to 220V 100W using Transistor. Eleccircuit site describe that this circuit is 100 watt power inverter using power transistor 2N3055. It is designed for you that need to use appliances at outdoor or no electrical places. Someone use it in car or the high mountain etc.

The maximum output power of this circuit about 100 watts, it is suitable for a normal lighting (all home lamps), also used for radio, mini TV, stereo or someone use it for.

And now you can read more you knowledge about Circuit Schematic Inverter 12V to 220V 100W using Transistor from the original source article using link [here].
